A matching cable assembly is a set of RF cables that have been precision manufactured and tested, with electrical length (phase length) or phase tolerance that matches the specifications of the end user at a specified frequency. These components ensure time synchronization of signals, enabling them to work together rather than interfering with each other. This synchronization is essential for all applications that are critical to signal integrity and accuracy. Electrical length matching involves calibrating the signal path to ensure that the signal can reach its destination simultaneously. In high-speed applications, any small delay can lead to signal degradation, data loss, or system failure. With the increasing demand for faster and more efficient systems in the industry, the difference in electrical length has significantly decreased, further increasing the requirement for cables to maintain accurate measurements.

The importance of matching cable components

In the rapidly developing electronic world, accuracy and reliability have always been key factors, especially in fields such as integrated antenna receiving systems, military, aerospace, commercial radar, testing and measurement, telecommunications, industrial RF, and microwave applications. The continuous advancement of technology and higher requirements for the performance and reliability of electrical components have made the construction of cables/cable assemblies more important. Among them, the electrical length matching specifications have been tightened to less than one or two degrees. This transformation requires significant improvements in mechanical accuracy for various cable styles to meet the strict requirements of today's applications. The main advantages of matching cables include:

Best accuracy: Matching cables can provide precise signal time relationships, which is crucial for systems where any small deviation can lead to significant errors.

Improving signal integrity: Matching cables helps maintain the integrity of transmitted signals. By reducing reflections and minimizing losses, these cables ensure that signals remain strong and clear throughout the entire transmission process.

Consistency of measurement results: Consistency is crucial in high-precision testing. Matching cables provide a reliable foundation for measurement, ensuring repeatable long-term performance.

Reduce calibration work: Due to the inherent timing relationship of cables, the need for extensive recalibration is minimized, allowing engineers more time to focus on analysis and interpretation.

The manufacturing process of matching cable components

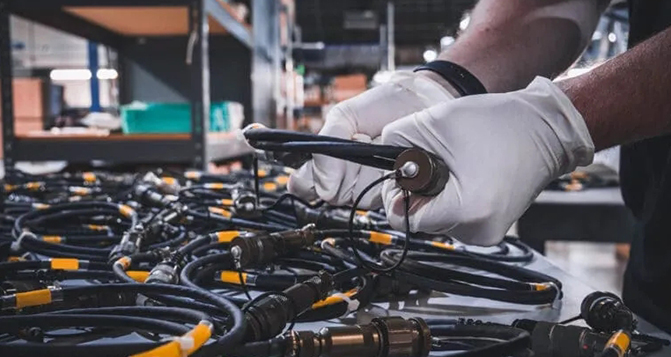

The multi-faceted manufacturing of matching cables requires specialized equipment and skilled technicians. As the demand for these components continues to grow, adhering to manufacturing standards is crucial. Industry leading technology combined with an experienced professional team is necessary to ensure that the matching components of top manufacturers meet the strict requirements of today's technological environment.

Mechanical accuracy requirements

To meet the requirements of the manufacturer, they have focused on the mechanical aspects of cable structures. The precision of cable design and construction has made significant progress:

Material selection: The selection of materials is crucial for the performance of cables. The current standard is to use high-quality conductors and insulators, which allows for optimized signal integrity and reduced losses. Advanced materials further affect the overall durability and flexibility of cables, making them suitable for various applications.

Manufacturing technology: Innovation in manufacturing processes enables more precise control of cable dimensions and characteristics. The processes including precision extrusion and advanced winding technology ensure that cables are manufactured according to precise specifications, minimizing changes that may affect electrical performance.

Testing and quality control: Strict testing procedures are now essential in the cable manufacturing process. The application of advanced testing methods enables manufacturers to verify whether their products meet the required electrical length matching standards before they are launched. This commitment to quality ensures that end users receive reliable, high-performance cables.

Typical applications

Most end use applications include phased array, which is a complex system in which multiple antennas or sensors work together to control and direct signal transmission or reception. By adjusting the phase of each independent unit, the system can guide energy beams (such as radio waves, sound waves, or light) without physical movement. Applications include:

Aerospace and Military: In electronic warfare, matching cable components are used because these mission critical systems require precise timing and signal integrity to achieve optimal performance.

Radar technology: Operating in space, air, or ground, modern radar technology uses timed components to accurately monitor and track a large number of targets. Thanks to the advantage of matching cables, advanced radar technology can accurately track and visualize targets.

Medical equipment: Magnetic resonance imaging (MRI) devices and computed tomography (CT) scanners rely on high-frequency components, including matching coaxial cables. Their use helps optimize the clarity and accuracy of CT images, ultimately contributing to improved patient treatment outcomes.

Communication system: Communication satellites and cellular base stations use coaxial cables that match to ensure communication synchronization between the base station and the system, ensuring system reliability. MIMO (Multiple Input Multiple Output) technology requires matching cables to ensure signal synchronization and improve overall system performance.

Testing and measuring equipment: In applications where accuracy is crucial, matching is a key factor.

Phase matching protocol

RF cables must be matched for optimal performance when used in conjunction. Matching may require pairing cables or whole batches of cables, each requiring precision and unique manufacturing protocols. The matching protocol includes:

Relative matching: A group of cables will have the same phase relationship, but not all groups have the same phase.

Absolute matching: Each cable in a group must be in the same phase and matched to the customer defined length.

The production procedures for achieving phase matching include:

The cables must be cut to exactly the same length and have very strict tolerances, while also needing to be assembled exactly the same to meet performance standards through strict physical tolerances. The cable undergoes phase matching during the production process and is tested on a network analyzer for verification.

In some applications/requirements, setting only the physical length is insufficient to achieve performance goals. In these cases, the 'trimming by length' protocol will be used. Evaluate the measurement values of the components and shorten the cables until their performance meets the required standards.

The Future Development Direction of Matching Cable Component Technology

One of the most important trends driving the demand for matching cable components is the shift towards higher frequencies, especially in the millimeter wave range. With the development of applications such as 5G communication, automotive radar, and satellite systems, precise phase control has become increasingly crucial. At these high frequencies, small phase differences can lead to significant errors in signal processing and data transmission. The challenge lies in maintaining phase stability under various environmental conditions and cable lengths. Engineers need to develop innovative solutions that not only meet these strict requirements, but also ensure consistent performance over time. This may trigger a surge in research and development, with a focus on advanced cable design and manufacturing technologies.

Higher Integration: Compact Solutions for Complex Systems

With the advancement of technology, a higher degree of integration within the system is inevitable. The equipment will become more compact, requiring matching cable components to seamlessly integrate into smaller design forms without sacrificing performance. The demand for integration will drive the advancement of compact solutions that seamlessly integrate multiple functionalities into one component. Manufacturers will need to focus on creating matching cable components that both save space and manage the complexity of integrated systems. Components may include multi-core cables or hybrid components, as well as multiple signal types, all of which maintain specified phase relationships.

Innovative Materials: The Key to Excellent Performance

As the industry seeks to optimize phase stability and flexibility, researchers are researching a range of innovative materials that can withstand the harsh conditions of high-frequency applications. Advanced materials with excellent dielectric properties can significantly reduce signal loss while improving phase accuracy; Flexible materials that can maintain performance during bending and twisting are crucial for designs with limited space and the need for movement. The development of these materials will undoubtedly optimize the performance of matching cable components and improve their applicability in various industries.
